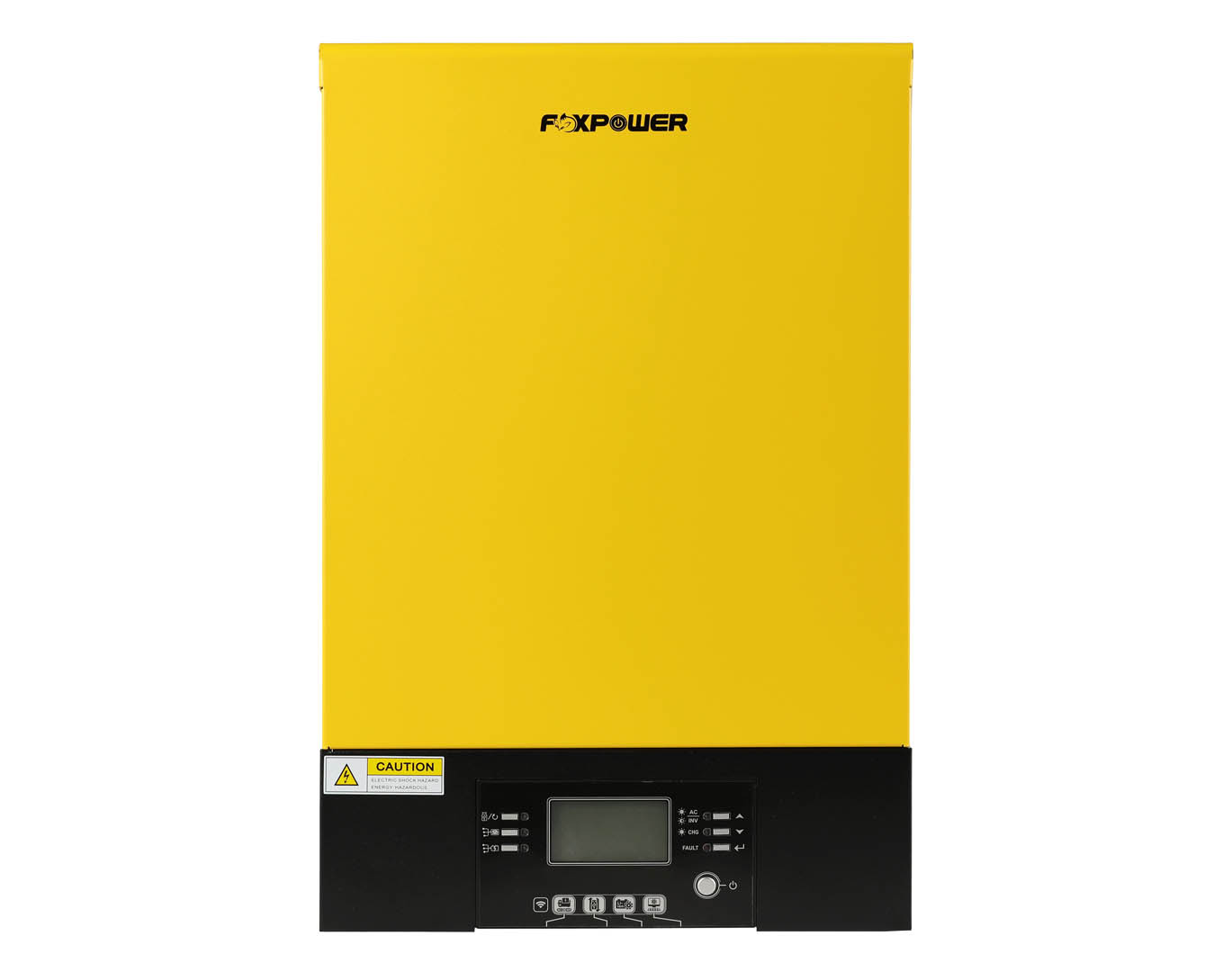

Hybrid Solar Inverter Beta V5 230Vac
Beta V5 hybrid solar inverter can provide power to connected loads by utilizing solar power, utility power, and battery power. Depending on different power situations, the Beta V5 hybrid inverter is designed to generate continuous power from PV solar modules (Solar Panels), batteries, and utility. When the MPP input voltage of PV modules is within an acceptable range, Beta V5 is able to generate power to feed into the grid (utility) and charge the battery.
- Pure sine wave output
- Self-consumption and feed-in to the grid
- Built-in MPPT solar charger
- Programmable supply priority for PV, Battery, or Grid
- User-adjustable charging current and voltage
- Programmable multiple operation modes: grid-tied, off-grid, and grid-tied with backup.
- Detachable LCD panel
- Built-in WIFI for mobile monitoring (APP is available)
- Supports USB on-the-go function
- Reserve BMS communication
- Parallel operation up to 9 units
Specifications
Maximum PV input power: 6000W
Rated Output Power: 5000W
Maximum charging power: 5000W
Grid-tied operation
- Nominal PV Voltage/Maximum PV voltage: 360Vdc/450Vdc
- PV input Start-up voltage/initial feeding voltage: 120Vdc/150Vdc
- MPPT voltage range: 120Vdc~430Vdc
- Number of MPP trackers/Maximum input current: 1/27A
- Nominal output voltage: 220-230-240Vac
- Output voltage range: 184~264.5Vac or 195.5~253Vac (selectable)
- Nominal output current: 21.7A
- Power factor: >0.99
- Maximum Conversion Efficiency (DC/AC): 95%
Off-grid Operation
- AC start-up voltage/auto restart voltage: 120~140Vac /180Vac
- Acceptable input voltage range: 90~280Vac or 170~280Vac
- Frequency Range: 50Hz/60Hz (auto sensing)
- Maximum AC input current: 40A
- Maximum PV voltage: 450Vdc
- MPP voltage range: 120Vdc~430Vdc
- Number of MPP trackers/ Maximum input current: 1/27A
- Nominal output voltage: 220/230/240Vac
- Output waveform: Pure sine wave
- Efficiency (DC to AC): 93%
Hybrid Operation
- Nominal PV Voltage/Maximum PV voltage: 360Vdc/450Vdc
- PV input Start-up voltage/initial feeding voltage: 120Vdc/150Vdc
- MPPT voltage range: 120Vdc~430Vdc
- Number of MPP trackers/Maximum input current: 1/27A
- Nominal output voltage: 220-230-240Vac
- Output voltage range: 184~264.5Vac or 195.5~253Vac (selectable)
- Nominal output current: 21.7A
- AC start-up voltage/ auto restart voltage: 120~140Vac/180Vac
- Acceptable input voltage range: 90~280Vac or 170~280Vac
- Maximum AC input current: 40A
- Nominal Output voltage: 220/230/240Vac
- Efficiency (DC to AC): 93%
- Nominal DC voltage: 48Vdc
- Maximum solar charging current: 100A
- Maximum AC charging current: 100A
- Maximum charging current: 100A
General
- Dimension: 140*365*468mm
- Net weight: 14kg
- Parallel function: Yes, 9 units

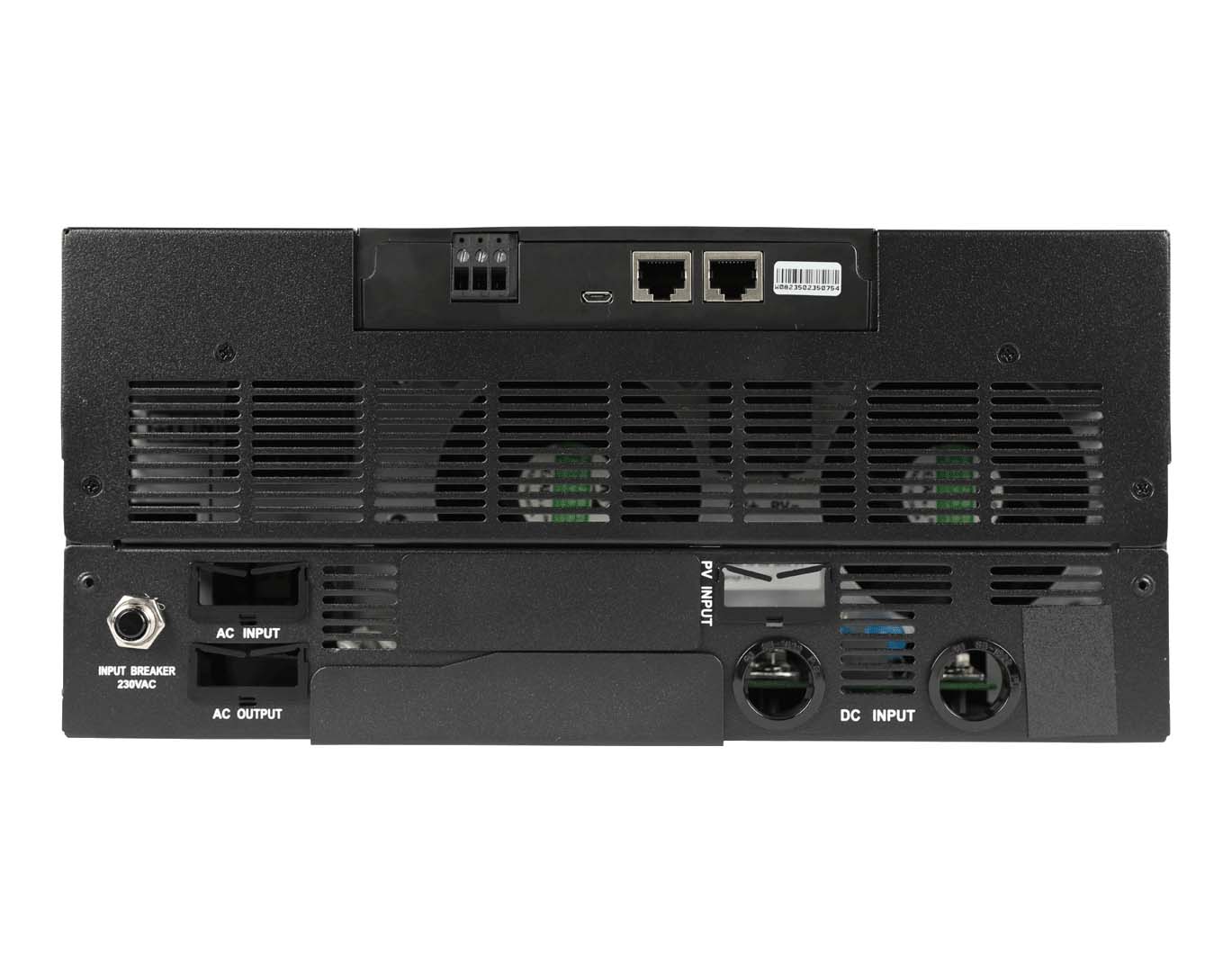

- Communication port: USB, RS-232, Dry contact, and wifi
- Humidity: 0~90% RH (No condensing)
- Operating temperature: -10ºC~50ºC
