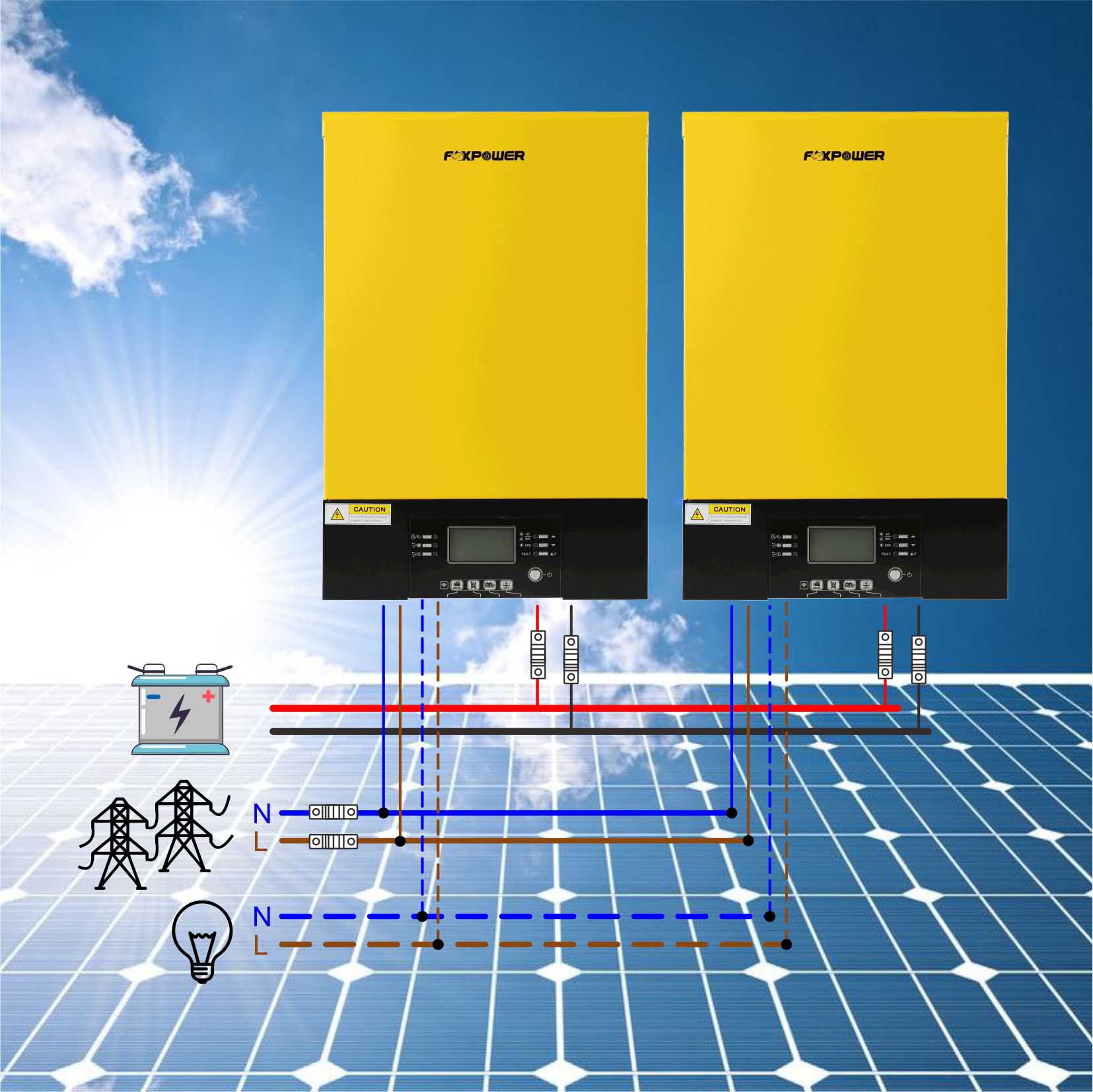

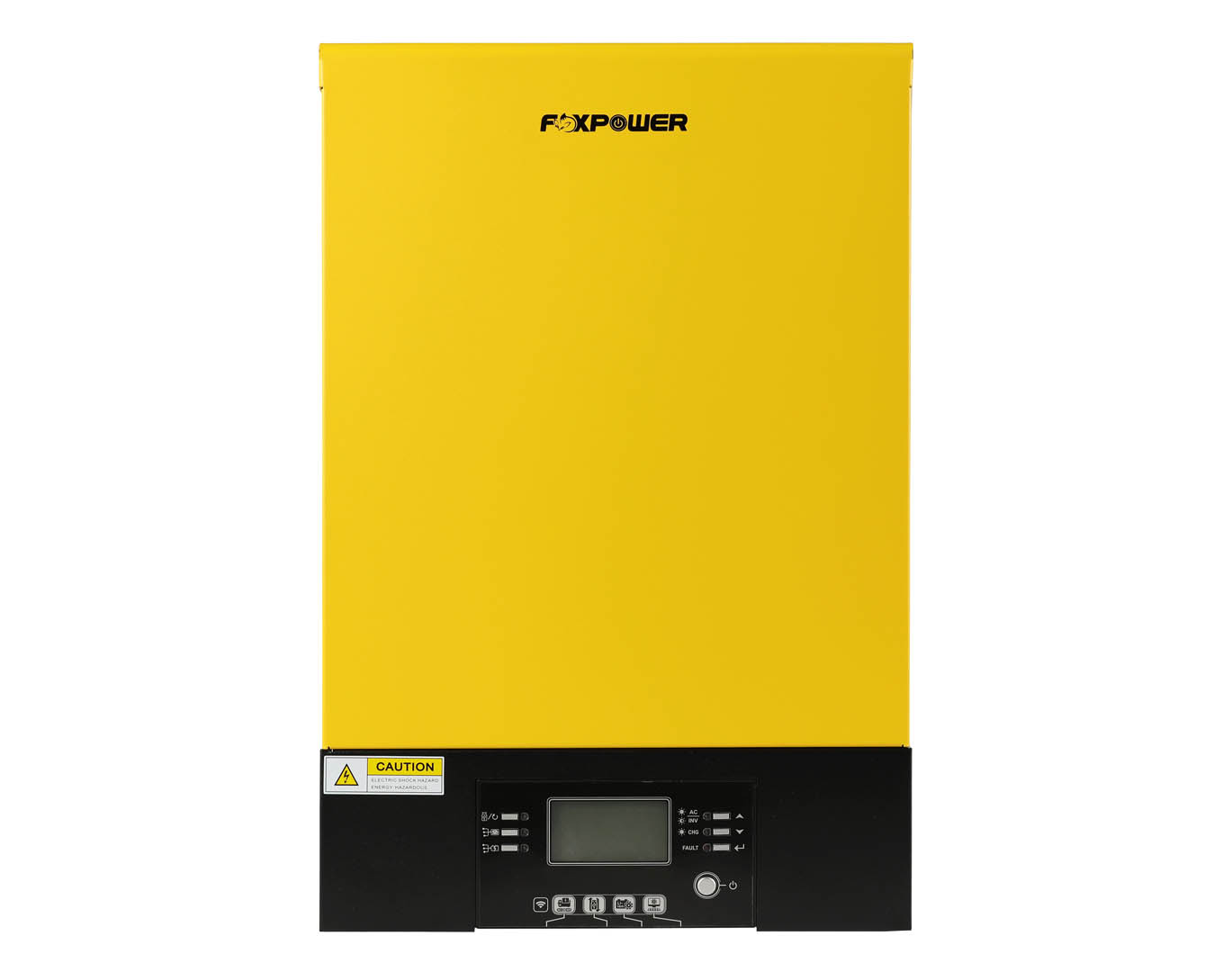

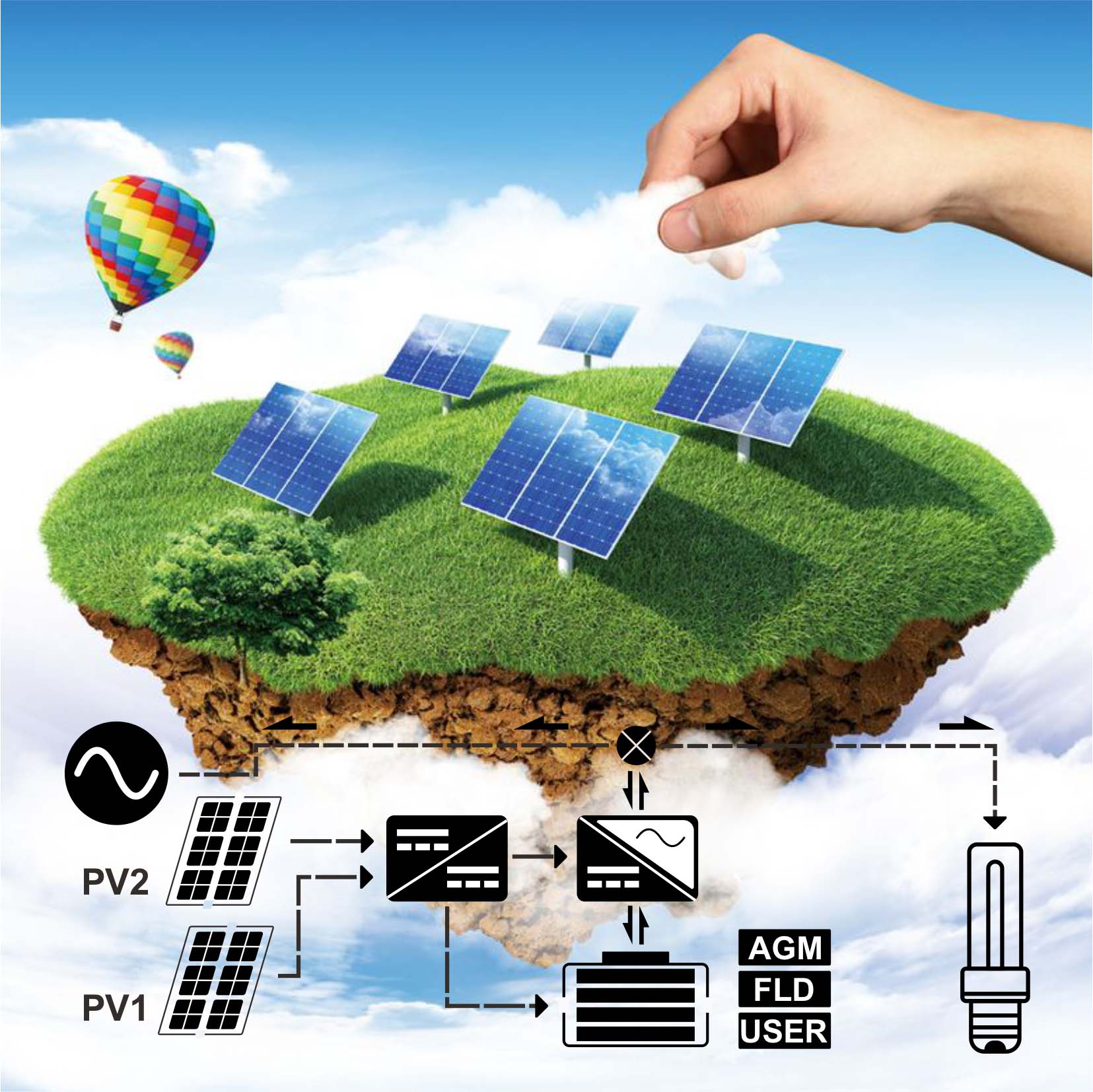

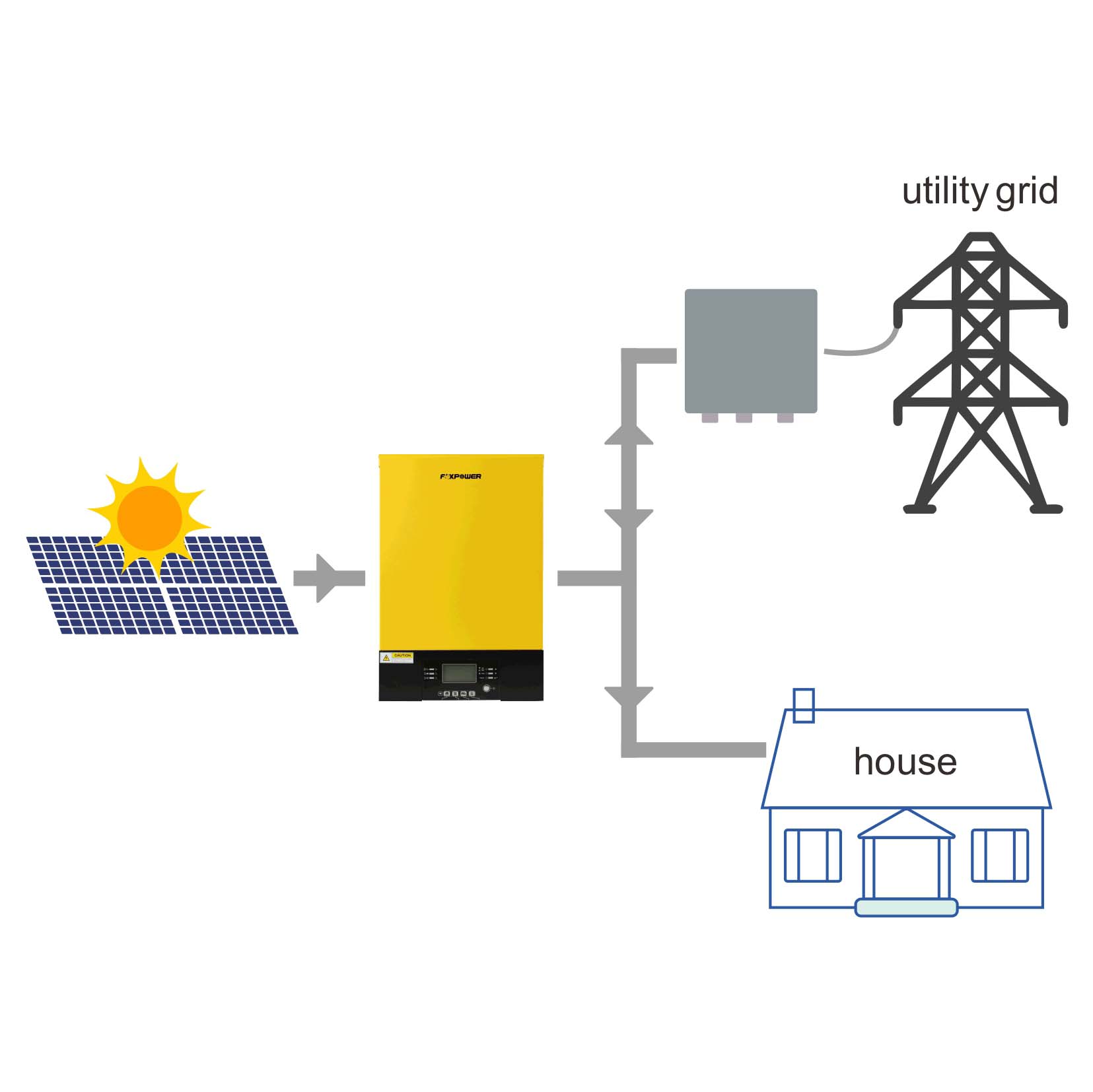

Beta V5 hybrid solar inverter can provide power to connected loads by utilizing solar power, utility power and battery power. Depending on different power situations, Beta V5 hybrid inverter is designed to generate continuous power from PV solar modules (Solar Panels), battery, and the utility. When MPP input voltage of PV modules is within acceptable range, Beta V5 is able to generate power to feed into grid (utility) and charge battery.
Solar energy will charge battery as first priority. Utility will charge battery only when solar energy is not available
Solar energy and utility will charge battery at the same time

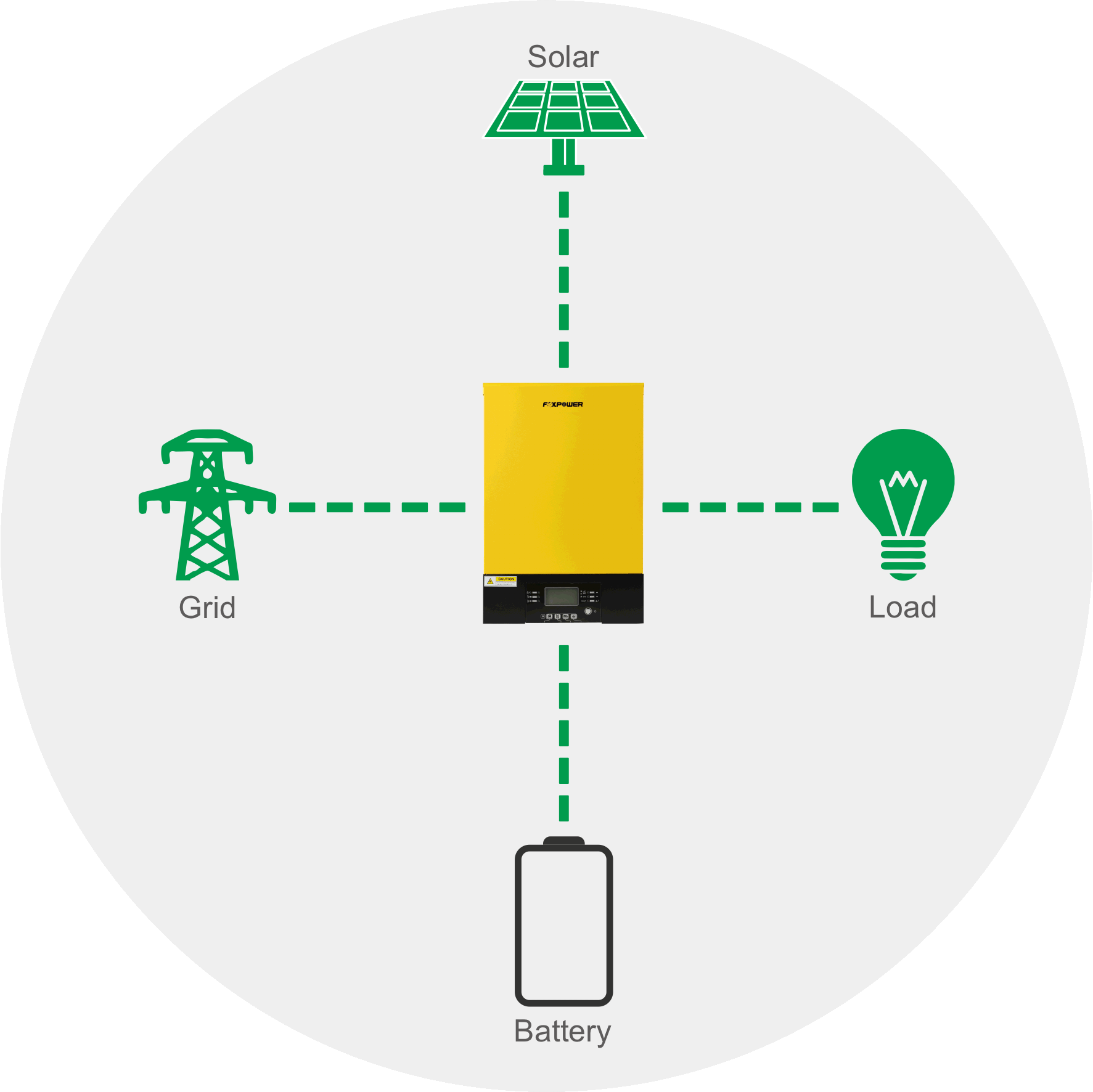

Solar energy will be the only charger source no matter utility is available or not
Solar energy provides power to the loads as priority. If solar energy is not sufficient to power all connected loads, utility energy will power the loads at the same time.
Utility will power the loads as priority. Solar and battery energy will power the loads when utility power is not available

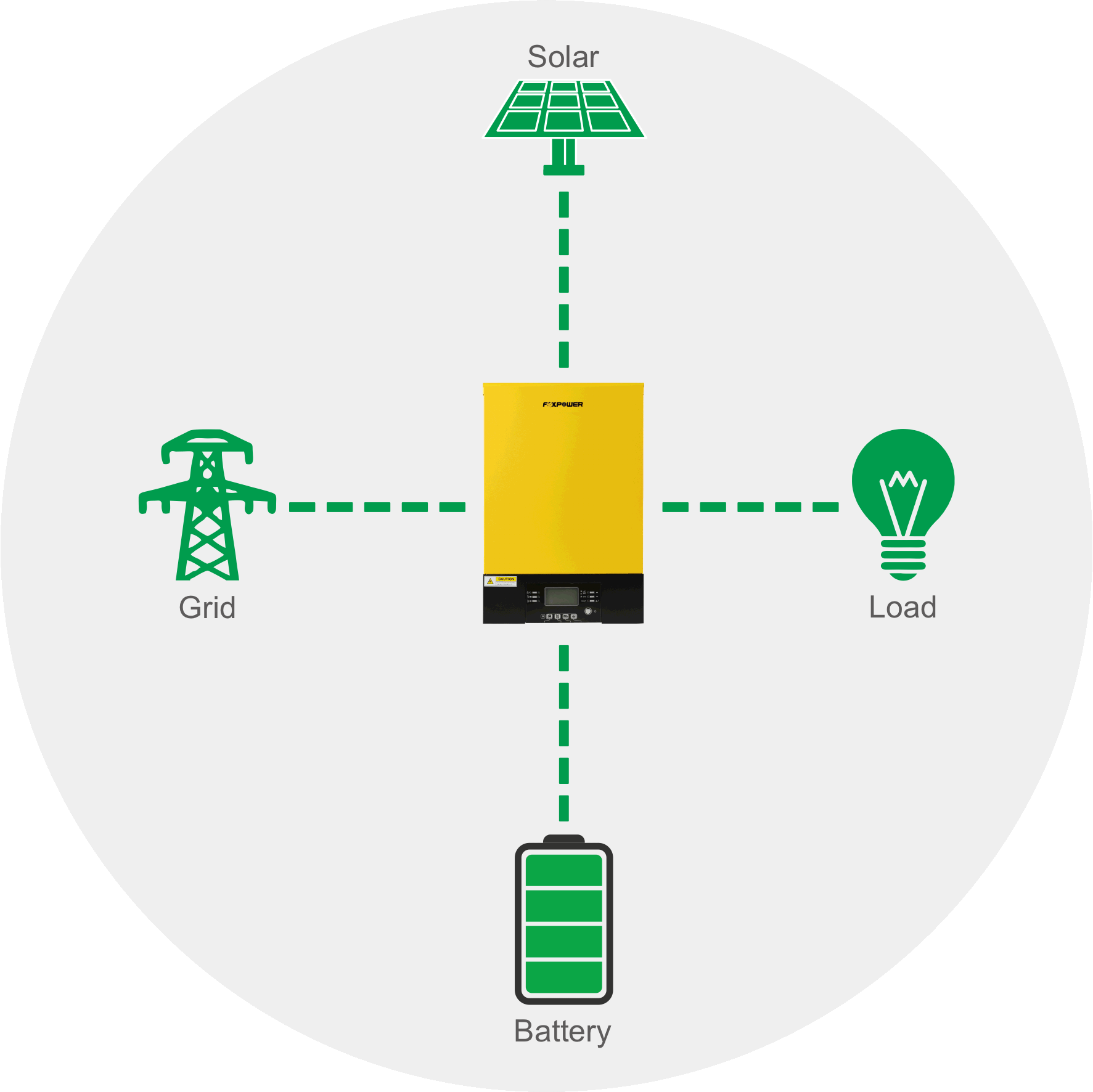

Solar energy power the loads as priority. If solar energy is not sufficient, battery will supply power to the loads. Utility power to the loads only when battery low voltage warning.
Display all status of the units and Users can easily set up or change the charging current, output source and charger source prioritization through LCD control panel to optimize.

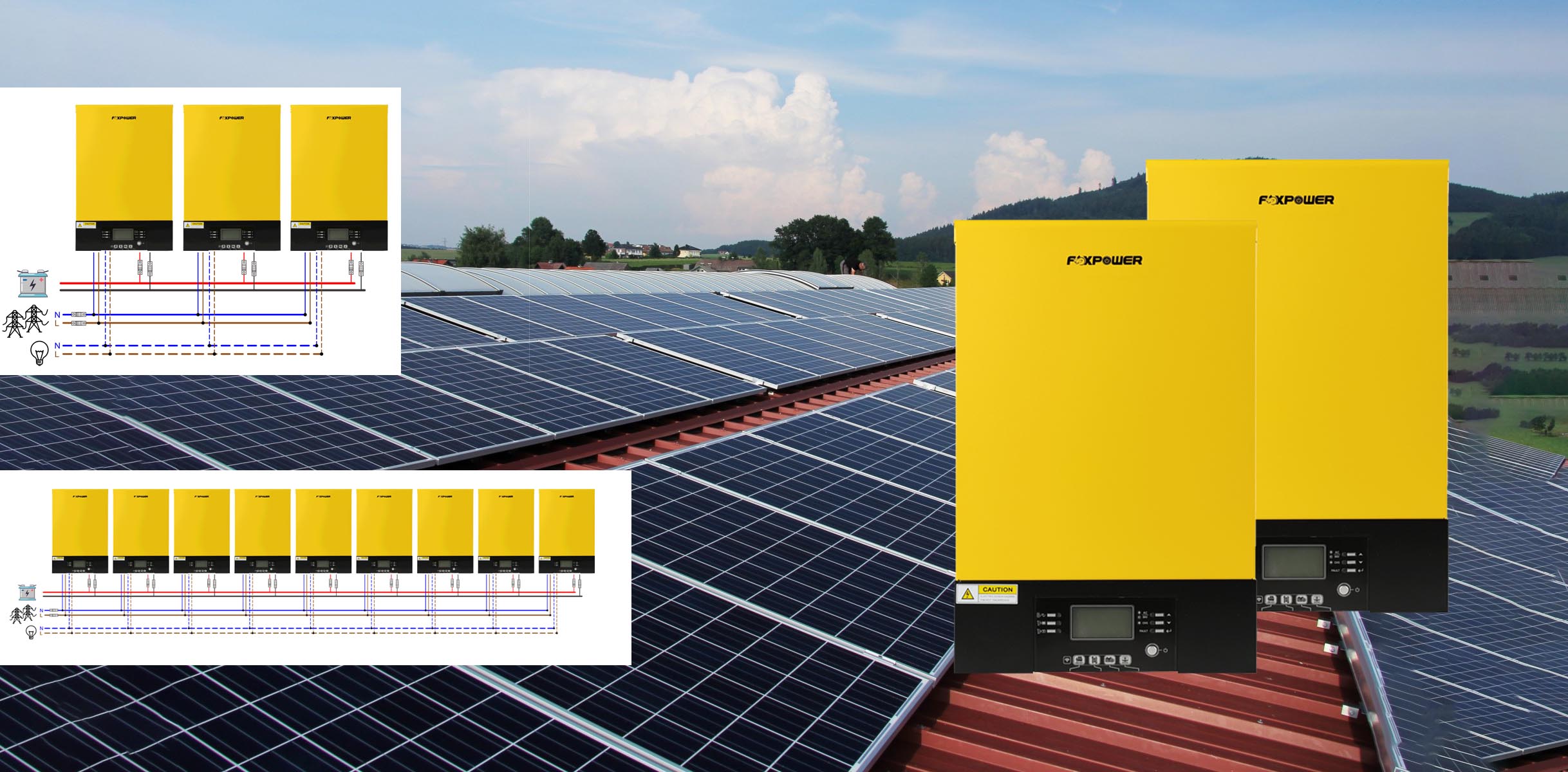

Beta V5 can support parallel operation up to 9 units, in single phase or three phase configuration. Parallel kits are built-in.

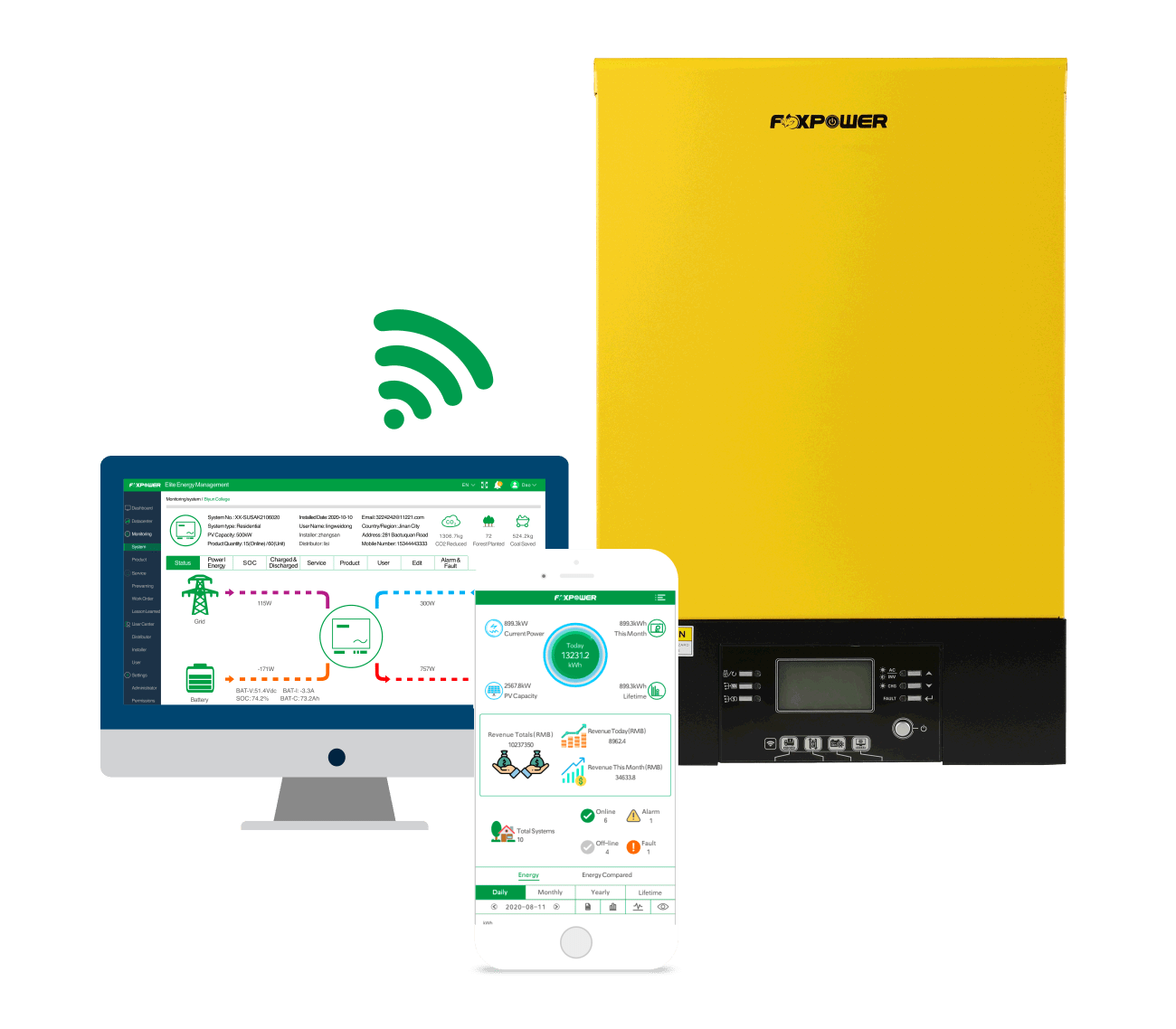

Built in WIFI module is available on the Beta V5 solar hybrid inverters allowing user quick and easy access to inverter data on mobile phone. And also, you can monitoring your systems on Cloud. Download app from Apple or Android store.
