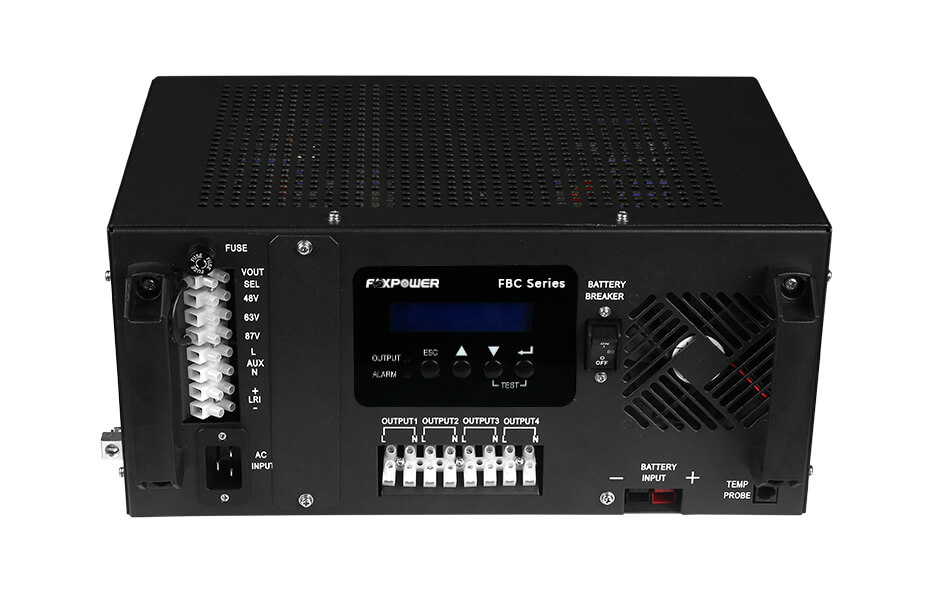

  • Foxpower broadband UPS

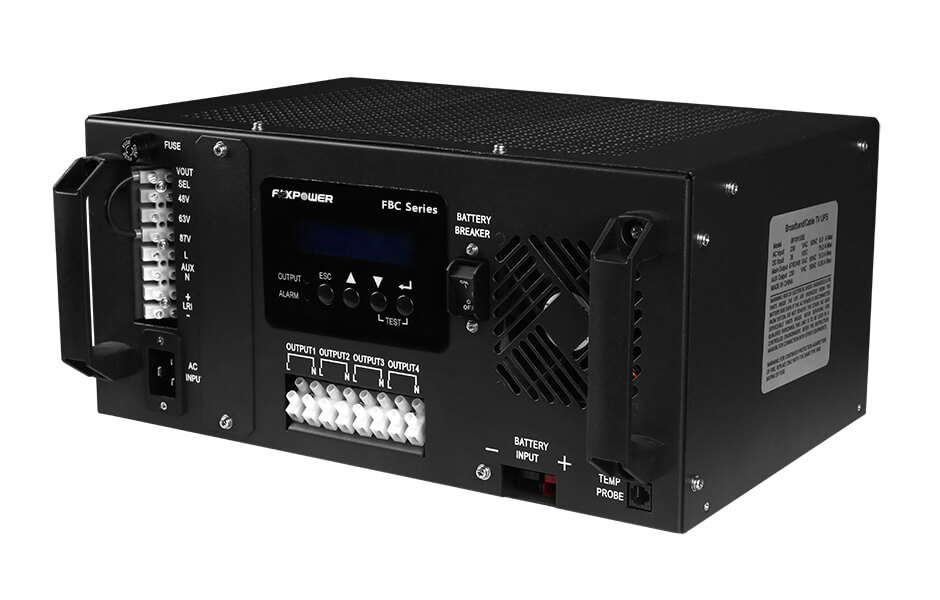

  • Foxpower Cable TV UPS

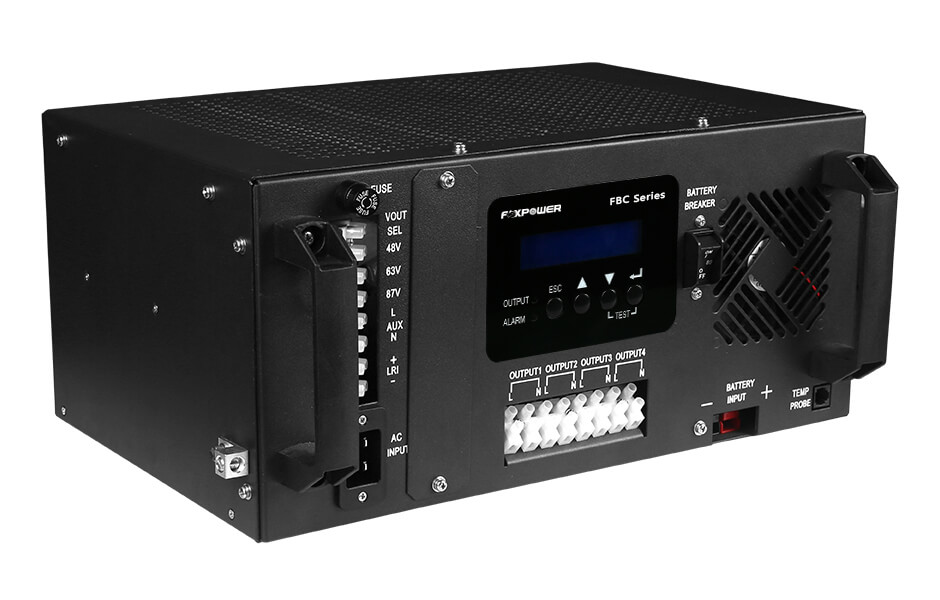

  • Foxpower CATV UPS

Broadband Cable TV Standby Power Supply – UPS

Foxpower’s FBC Series of broadband Cable TV UPS is a cost effective standby power supply designed for powering signal processing equipment in the cable television and broadband LAN distribution systems.It provides a critical load with current-limited, regulated, AC power that is free of spikes, surges, sags and noise. The FBC’s line interactive ferro topology allows it to compensate for input voltage variations of ±30% while providing constant output voltage.

The FBC is an ideal solution for cable operators who need a high quality, very reliable uninterruptible power supply. Features of the FBC include vertical or shelf options, slot for status monitoring card, smart display, terminal block output connections, selectable output taps, external battery temperature probe, built-in chassis handle and replaceable MOV’s.

Product Highlights

FBC Series UPS is developed for global Cable TV and Broadband LAN applications, which is of good performance and high quality thus it contents a lot of strict quality and reliability test standards. Light weight ferro transformer electric design and good impact mechanic design which presents very good convenience to field installment and maintenance. Front panel interface, Smart Menu display together with blue back light LCD module, flexible output selection(48V/63V/87V) will provide customers brand new experience. Modern three-stage battery charging management technology together with battery temperature compensation implementation performs high rate battery charging to expected capacity and also extends battery life a lot

  • Line Interactive Ferro transformer Technology (LIFT)
  • Wide input voltage range +25%~-30%
  • Integrated SCTE HMS/MIB Internet web port with embedded SNMP implemented (Optional)
  • Light weight ferro transformer and good impact
  • Smart LCD display with blue back light
  • Field programmable flash memory and flexible parameters configuration on site
  • External battery breaker for fast protection
  • IEC standard line cord

Technical Specification

ModelFBC 1336FBC 0736EFBC 0736FBC 1148E
Electrical
Rated input voltage115Vrms225Vrms225Vrms225Vrms
Variation range+25/-30% (81 to 143Vrms)+25/-30% (160 to 281Vrms)+25/-30% (160 to 281Vrms)+25/-30% (160 to 281Vrms)
Line return: +20/-25%Line return: +20/-25%Line return: +20/-25%Line return: +20/-25%
Nominal input current13A7A7A11A
Input frequency60Hz/±3Hz60Hz/±3Hz50Hz/±3Hz50Hz/±3Hz
Standby mode
DC voltage36Vdc36Vdc36Vdc48Vdc
Low DC cut-off1.75V/cell1.75V/cell1.75V/cell1.75V/cell
Output 48/63/87V (Field applicabe)48/63/87V (Field applicabe)48/63/87V (Field applicabe)48/63/87V (Field applicabe)
Regulation, 87V Tap±3%±3%±3%±3%
Regulation, 63V Tap±3%±3%±3%±3%
Rated output current15Arms15Arms15Arms22Arms
Output configurationFour promgrammable outputs
Output frequency60Hz/±0.1Hz (inverter mode)60Hz/±0.1Hz (inverter mode)50Hz/±0.1Hz (inverter mode)50Hz/±0.1Hz (inverter mode)
WaveformQuasi square waveQuasi square waveQuasi square waveQuasi square wave
Slew rate<200 V/ms<200 V/ms<200 V/ms<200 V/ms
<100 V/ms typical<100 V/ms typical<100 V/ms typical<100 V/ms typical
Crest Factor (Peak/RMS)1:3:1 typical1:3:1 typical1:3:1 typical1:3:1 typical
Efficiency @87Vrms @100% load91% typical91% typical91% typical91% typical
Efficiency @87Vrms @75% load90% typical90% typical90% typical90% typical
Efficiency @87Vrms @50% load88% typical88% typical88% typical88% typical
Efficiency @87Vrms @25% load>84% typical>84% typical>84% typical>84% typical
Inverter operation (40 to 100% load)85% typical85% typical85% typical85% typical
Overload protection
87V Tap24Arms24Arms24Arms24Arms
63V Tap33Arms33Arms33Arms33Arms
Output short-circuit (@nominal input)
63V Tap<150% ratedoutput current<150% ratedoutput current<150% ratedoutput current<150% ratedoutput current
Overload operation
0% to 110% LoadContinuous Operation Continuous Operation Continuous Operation Continuous Operation
115% to 125% loadshutdown output in 30minsshutdown output in 30minsshutdown output in 30minsshutdown output in 30mins
125% to 150% loadshutdown output in 10minsshutdown output in 10minsshutdown output in 10minsshutdown output in 10mins
>150% loadshutdown output in 10secsshutdown output in 10secsshutdown output in 10secsshutdown output in 10secs
Battery charger
Charge current10A10A10A10A
Temperature compensation-5mV/Cell/°C (Programmable)
Constant current chargequick carge to 90% capaity
Constant voltage charge2.40V/Cell (Typ. 7hrs)
Ambient Temperature Range-40°C to 55°C
Humidity 0 to 95% non-condensing
Elevation0 - 3000m
Height (mm)198198198198
Width (mm)465465465465
Length (mm)290290290290
Weight (kg)27.527.527.530.5
Front panel LCD2 x 20 character LCD, blue backlight
LED IndicatorsOutput status and alarms
FinishDark powder coating
Status MonitorOptional
Abency ComplianceEletrical safety North America: UL1778, CSA 22.2 No 107.1
Electricl safety International: CE EN62040-1-2
EMI compliance: FCC/IC/CE Class A; CISPR 22/ EN50022; EN 62040-2
